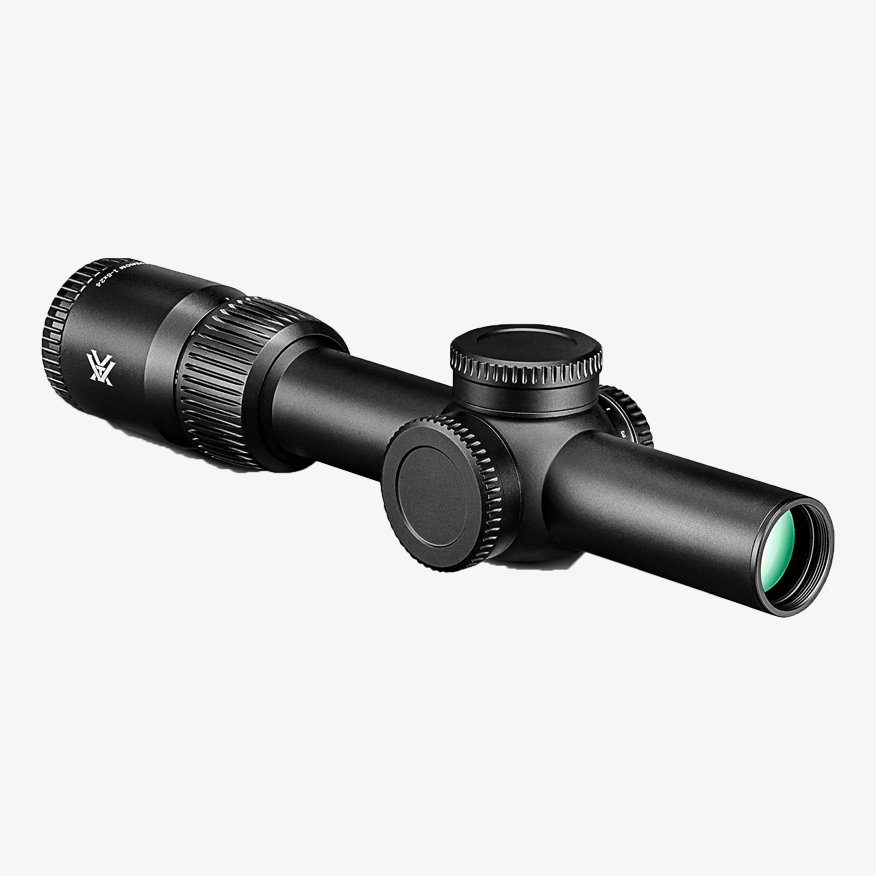

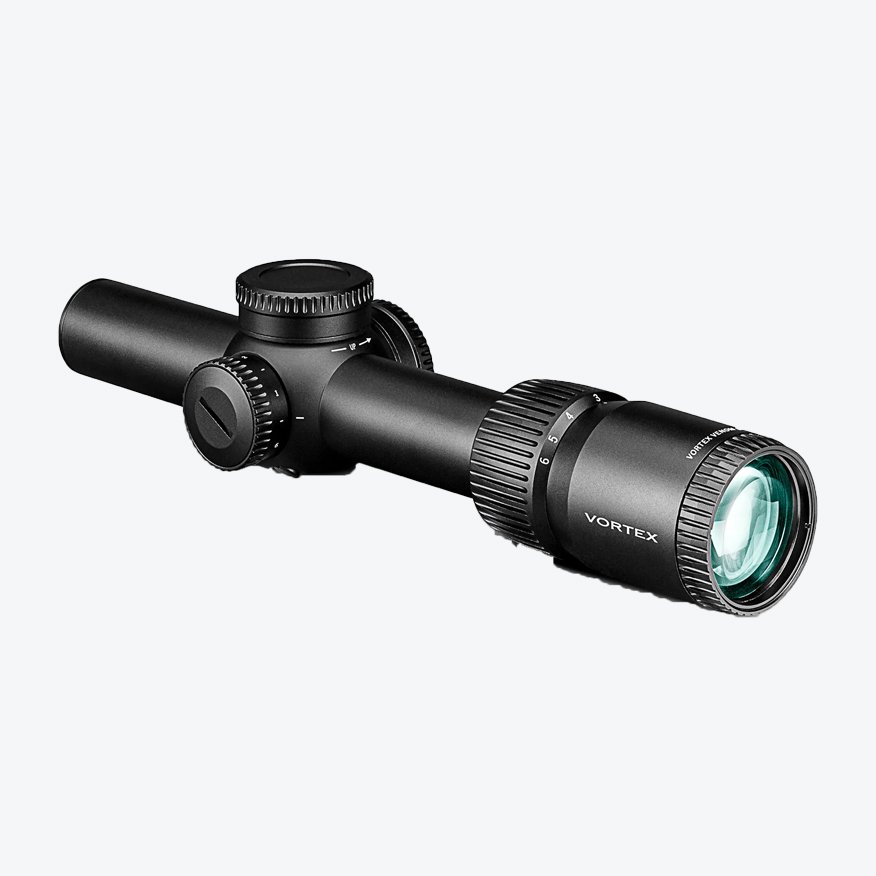

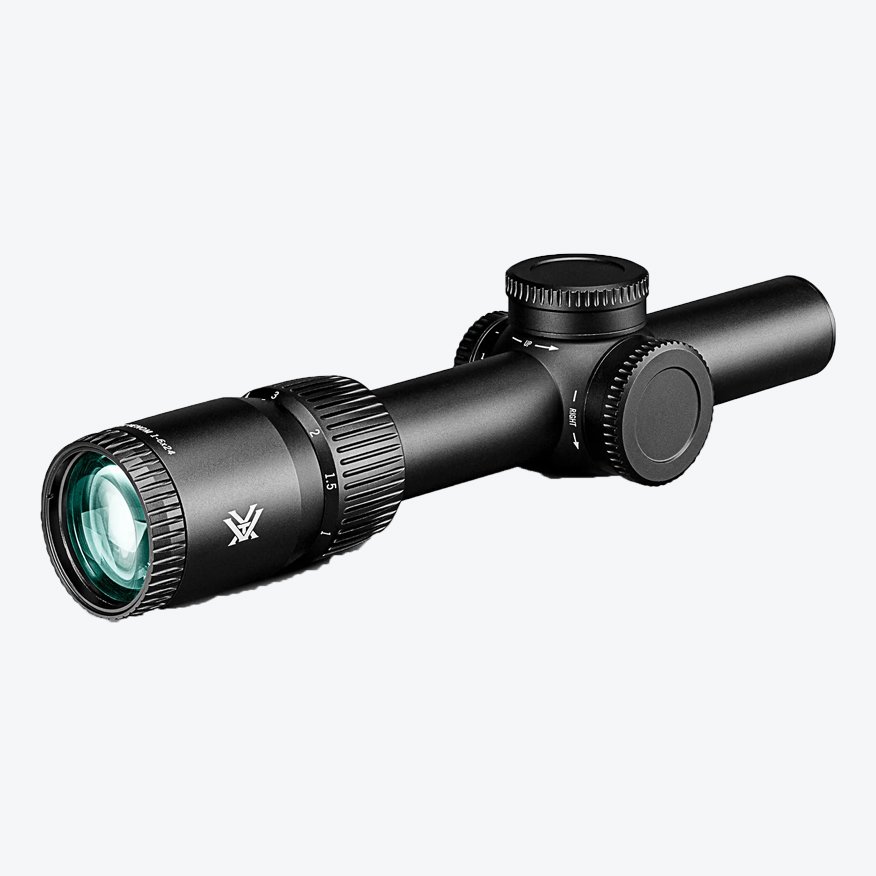

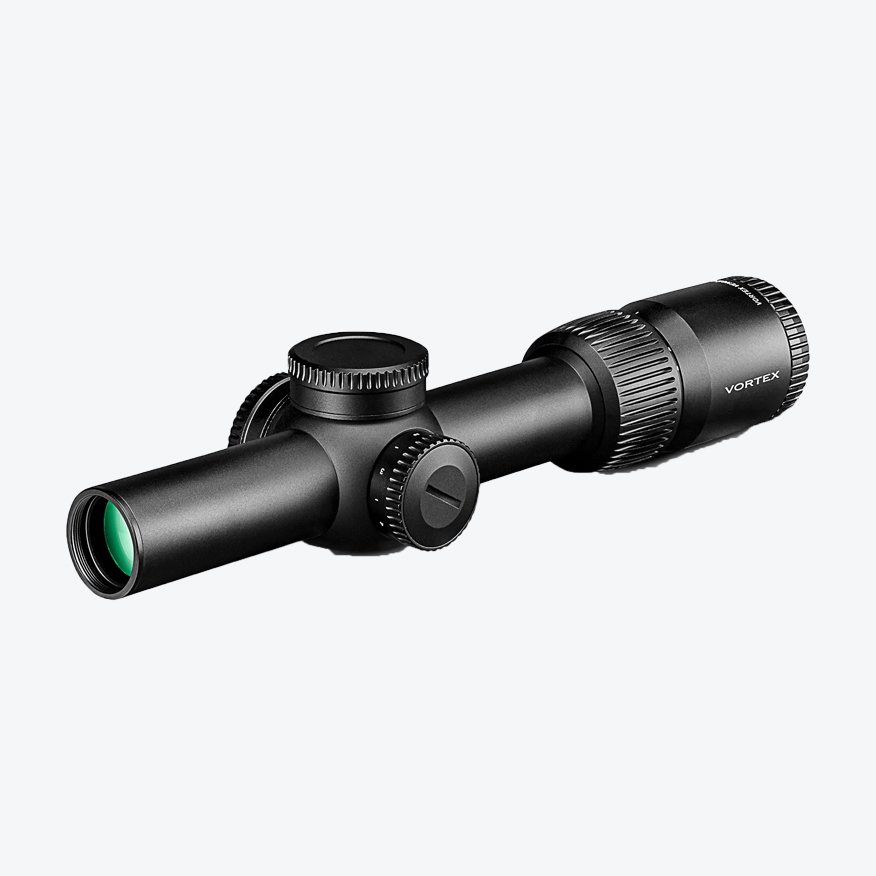

Vortex VENOM® 1-6x24IR (MOA)

Overview

Venom^® is your bridge to long-range accuracy and tactical success—a workhorse optic that turns effort into results. Solid construction. Great glass quality with clarity and contrast that keeps you focused in any environment, whether you’re locking onto close-quarters targets or stretching your limits at range. Built for shooters who need reliability, speed, and accuracy under pressure, its lineup delivers a perfect blend of utility and performance—getting you in the game and pushing you further with every shot.

Venom^® 1-6×24 SFP Dimensions (in inches)

Lengths
L1	L2	L3	L4
10.3	2.8	2.3	6.7

Heights
H1	H2
1.2	1.8

Specifications

Magnification	1-6x
Objective Lens Diameter	24 mm
Focal Plane	Second Focal Plane
Reticle	AR-BDC3
Eye Relief	3.7″
Field of View	126.0′ – 20.2′ @ 100 yds
Turret Style	Capped
Tube Size	30mm
Adjustment Graduation	1/4 MOA
Travel Per Rotation	25 MOA
Max Elevation Adjustment	140 MOA
Max Windage Adjustment	140 MOA
Parallax Setting	100 yds.
Length	10.3″
Weight	19.5 oz

Features

XD™ Optical System	Premium optical system delivers impressive resolution, edge-to-edge sharpness, greatly reduces chromatic aberration, and guarantees bright, high-contrast images.
Fully Multi-Coated Lenses	Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
Illuminated Reticle	Provides precise aiming under low-light conditions.
Single-Piece Tube	Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Nitrogen Gas Purged	Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions.
Fast-Focus Eyepiece	Allows for quick and easy reticle focusing.
Throw Lever	The included throw lever can be installed for quick and easy magnification adjustments.
Aircraft Grade Aluminum	Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
ArmorTek®	Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Low Glare Matte Black Anodize	Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter’s position.
Waterproof	Designed to withstand harsh weather conditions.
Shockproof	Designed to withstand the highest levels of recoil and impact.
Fogproof	Designed to withstand a wide range of temperatures.

Reticle

AR-BDC3

The illuminated, glass-etched AR-BDC3 is specifically tuned to the ballistic performance of common 5.56 loads out of an AR-15. The 1 MOA center dot provides a precise point of aim while the surrounding 16.625 MOA broken circle gets your eye into the center faster for rapid target acquisition, and the BDC keeps you on target out to 650 yards.

Subtension detail for Venom 1-6×24 riflescope with AR-BDC3 reticle.
